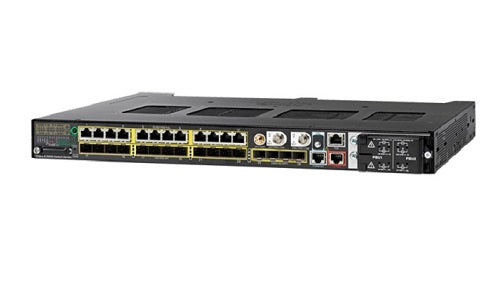

IE-5000-12S12P-10G - Cisco Industrial Ethernet 5000 Switch, 12 GE SFP/12 GE PoE+ with 4 1G/10G SFP Uplink Ports - New
Manufacturer Part #: IE-5000-12S12P-10G
Availability: Stock Available
Cisco IE5000 Switch - 28 Port - 12 x Gigabit Ethernet SFP and 12 x Gigabit Ethernet PoE+ with 4 x 1GigE/10GigE SFP Uplink Ports - LAN Base Cisco IOS Software - rack-mountable
The Cisco Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE5000 has built-in SW image verification to ensure authenticity of the Cisco Software.
The IE 5000 Series can be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc., using powerful enterprise-grade intent-based network management platform such as Cisco DNA Center.
The IE 5000 Series is ideal for industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, Intelligent Transportation Systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3200, IE 3300, IE 3400, IE 4000 and IE 4010 Series Switches, as well as utility - focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
|Product Description||Cisco Industrial Ethernet 5000 Series - switch - 28 ports - managed - rack-mountable|
|Device Type||Switch - 28 ports - managed - stackable|
|Enclosure Type||Rack-mountable 1U|
|Ports||4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x 10/100/1000 (PoE+)|
|Power Over Ethernet (PoE)||PoE+|
|Performance||Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 95.238 Mpps|
|Capacity||RADIUS clients 4 ¦ IGMP groups: 1000 ¦ VLANs supported: 1005 ¦ NAT translations: 256|
|MAC Address Table Size||16K entries|
|Routing Protocol||OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)|
|Remote Management Protocol||SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP|
|Features||Layer 3 switching, layer 2 switching, NAT support, ARP support, IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, DHCP snooping, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), fanless, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), static routing, 802.1x authentication, SNMP support, MACsec support, IGMP filtering, Oven-Controlled Quartz Oscillator (OCXO), PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), TrustSec support, CIP Sync (IEEE 1588), Network Timing Protocol (NTP), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, Private VLAN, Guest VLAN, STP BPDU Guard|
|Compliant Standards||IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613|
|Dimensions (WxDxH)||17.5 in x 14 in x 1.8 in|
