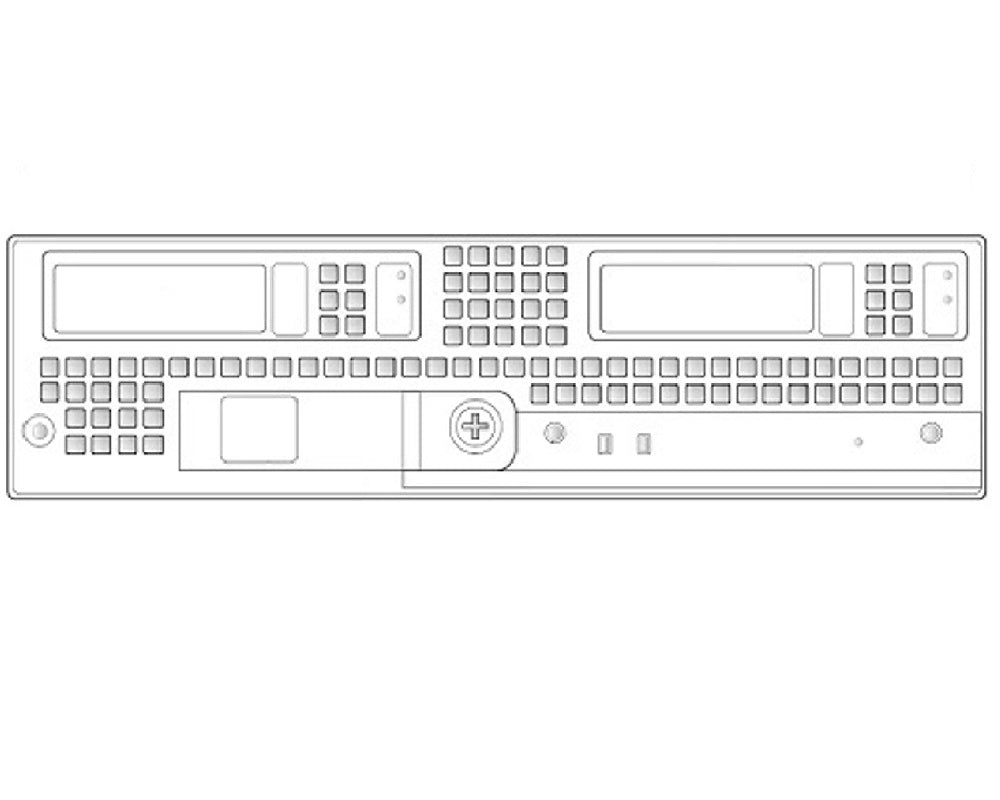

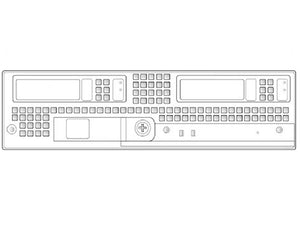

FPR9K-SM-56 - Cisco Firepower 9300 CPU Crypto Security Module - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: FPR9K-SM-56
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
End Of Life - Last Day Of Support: March 31, 2031
Replacement: No direct replacement
Cisco Firepower 9300 Security Module 56 - 80G (FW) / 68G (NGFW) / 73G (NGIPS) - 8 x SFP+ on-chassis Interfaces - 384 GB of DDR4 memory - with 2 x 1.6 TB SSDs in RAID-1 configuration - One enhanced security acceleration module
Cisco Firepower 9300 is a scalable (beyond 1 Tbps when clustered), carrier-grade, modular platform designed for service providers, high-performance computing centers, large data centers, campuses, high-frequency trading environments, and other points in the network requiring low (less than 5-microsecond offload) latency and exceptional throughput.
Firepower 9300 supports flow-offloading, programmatic orchestration, and the management of security services with RESTful APIs. It is also available in Network Equipment Building Standards (NEBS)-compliant configurations.
The 9300 Series runs either the Cisco Secure Firewall ASA or Threat Defense (FTD) software.
| Device Type | Firewall - security module |
| Form Factor | Plug-in module for the Firepower 9300 chassis (3 security module slots per chassis) |
| Storage | 2 x SSDs in RAID-1 configuration (1.6 TB per security module) |
| Performance - Threat Defense (FTD) | FW + AVC throughput (1024B): 70 Gbps ¦ FW + AVC + IPS throughput (1024B): 68 Gbps ¦ TLS (hardware decryption): 12 Gbps ¦ NGIPS throughput (1024B): 73 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 36 Gbps |
| Performance - ASA | Stateful inspection firewall throughput: 80 Gbps ¦ Stateful inspection firewall throughput (multiprotocol): 64 Gbps ¦ IPsec VPN throughput (450B UDP L2L): 30 Gbps ¦ Firewall latency (UDP 64B): 3.5 microseconds |
| Capacity - Threat Defense (FTD) | Maximum concurrent sessions with AVC: 35 million ¦ Maximum new connections per second with AVC: 490K ¦ Maximum VPN peers: 20,000 |
| Capacity - ASA | Concurrent firewall connections: 60 million ¦ New connections per second: 2 million ¦ Maximum VPN peers: 20,000 ¦ Security contexts (included; maximum): 10; 250 |
| High Availability | ASA: active/active and active/standby, clustering up to 16 security modules across up to 16 chassis ¦ FTD: active/active (with clustering) and active/standby, up to 6 modules across up to 6 chassis |
| NEBS | Not NEBS compliant (Firepower 9300 NEBS compliance applies only to SM-40 and SM-48) |
| Operating Temperature | Maximum 35°C (95°F) at sea level; subtract 1°C for every 1,000 ft above sea level; operating altitude 0 to 10,000 ft (3,048 m) |
