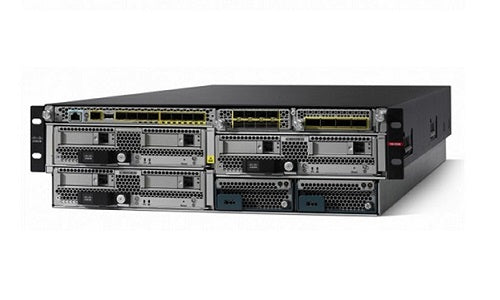

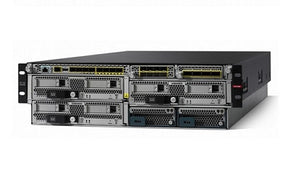

FPR-C9300-AC - Cisco Firepower 9300 Security Appliance Chassis, AC PSU - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: FPR-C9300-AC
Condition: REFURBISHED
Availability: Inventory Available | Request A Quote For Larger Quantities - May Be Limited
End Of Life - Last Day Of Support: March 31, 2031
Replacement: No direct replacement
Requires Heavy Weight / Skid Shipping
Cisco Firepower 9300 firewall chassis - AC Chassis, 200 to 240V AC, 2,500 watt maximum output - 3 x Security Module slots, 2 x Network Module slots (within supervisor) - Supervisor with 8 x 10 Gigabit Ethernet SFP+ ports - 4 hot-swappable fans - NEBS compliant with SM-40 and SM-48 Security Modules - 3 Rack Units (3RU), rack mountable in standard 19-in. (48.3-cm) square-hole rack, mount rails included
Cisco Firepower 9300 is a scalable (beyond 1 Tbps when clustered), carrier-grade, modular platform designed for service providers, high-performance computing centers, large data centers, campuses, high-frequency trading environments, and other points in the network requiring low (less than 5-microsecond offload) latency and exceptional throughput.
Firepower 9300 supports flow-offloading, programmatic orchestration, and the management of security services with RESTful APIs. It is also available in Network Equipment Building Standards (NEBS)-compliant configurations.
The 9300 Series runs either the Cisco Secure Firewall ASA or Threat Defense (FTD) software.
| Device Type | Firewall - modular security appliance chassis |
| Form Factor | Chassis, rack mount 3RU - 3 security module slots, 2 network module slots |
| Supervisor | Cisco Firepower 9000 Supervisor with 8 x 10 Gigabit Ethernet SFP+ ports and 2 network module slots for I/O expansion |
| Supported Security Modules | SM-40, SM-48, SM-56 (each with 2 x SSDs in RAID-1 configuration) |
| Maximum Interfaces | Up to 24 x 10GbE (SFP+); up to 8 x 40GbE (QSFP+) or 8 x 100GbE with 2 network modules; up to 24 x 1GbE (SFP) with network modules and fixed ports |
| Management | 1 x Gigabit Ethernet copper management port (on supervisor) - 1 x RJ-45 console - 1 x USB 2.0 |
| Storage | Up to 4.8 TB per chassis (1.6 TB per security module in RAID-1 configuration) |
| Performance | Depends on installed security modules - up to 235 Gbps stateful inspection firewall throughput (ASA, 3 x SM-56) ¦ up to 190 Gbps FW + AVC throughput (FTD, 3 x SM-56) |
| Capacity | Depends on installed security modules - up to 195 million concurrent firewall connections and 4.75 million new connections per second (ASA, 3 x SM-56) ¦ up to 60,000 VPN peers |
| High Availability | ASA: active/active and active/standby, clustering up to 16 security modules across up to 16 chassis ¦ FTD: active/active (with clustering) and active/standby, up to 6 modules across up to 6 chassis |
| Power | AC 200 to 240V, 50 to 60 Hz, 15.5A to 12.9A max input - 2,500W max output - 92% efficiency (50% load) |
| Power Redundancy | 1+1 |
| Fans | 4 hot-swappable fans |
| Noise | 75.5 dBA at maximum fan speed |
| Dimensions (WxDxH) | 17.5 in x 32 in x 5.25 in (44.5 x 81.3 x 13.3 cm) |
| Weight | 105 lb (47.7 kg) with one security module; 135 lb (61.2 kg) fully configured |
