WS-C2960XR-24TD-I - Cisco Catalyst 2960XR Network Switch - New
Manufacturer: Cisco
Manufacturer Part #: WS-C2960XR-24TD-I
Condition: NEW
Availability: End of Life - Stock May Be Limited
Last Day Of Support: October 31, 2026
Replacement: C9200-24T

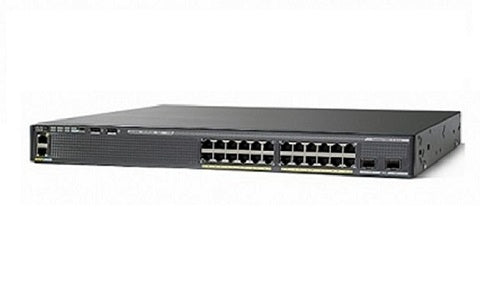

Cisco Catalyst 2960XR-24TD-I - switch - 24 ports - managed - rack-mountable
Cisco Catalyst 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. They operate on Cisco IOS Software and support simple device management as well as network management.
The Cisco Catalyst 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x SFP+ |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding performance: 95.2 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Features | Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 16.1 in x 1.8 in |
| Weight | 13.01 lbs |
