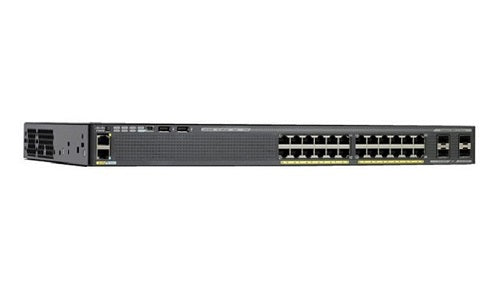

WS-C2960X-24TD-L - Cisco Catalyst 2960X Network Switch - New
Manufacturer: Cisco
Manufacturer Part #: WS-C2960X-24TD-L
Condition: NEW
Availability: End of Life - Stock May Be Limited
Last Day Of Support: October 31, 2026
Replacement: C9200L-24T-4X
Cisco Catalyst 2960X-24TD-L - switch - 24 ports - managed - rack-mountable
Cisco Catalyst 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. They operate on Cisco IOS Software and support simple device management as well as network management.
The Cisco Catalyst 2960-X Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
Device Type | Switch - 24 ports - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x SFP+ |
Performance | Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 95.2 Mpps |
Capacity | Active VLANs: 1023 |
Jumbo Frame Support | 9216 bytes |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
Features | Full duplex capability, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus, DiffServ Code Point (DSCP) support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 17.5 in x 11 in x 1.8 in |
Weight | 8.82 lbs |
