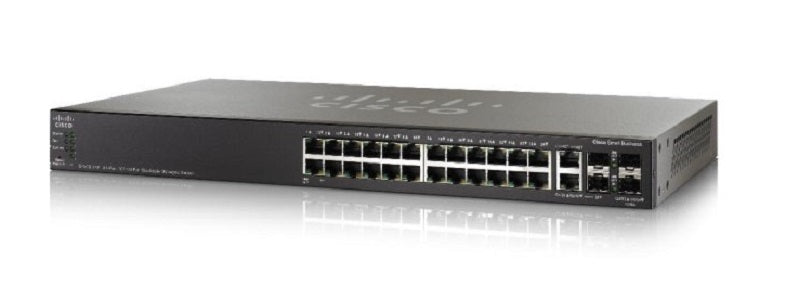

SG500X-24MPP-K9-NA - Cisco SG500X-24MPP Stackable Managed Switch, 24 Gigabit and 4 10Gig Ethernet SFP+ Ports, 740 PoE - New

Cisco

$1,925.00
SKU: SG500X-24MPP-K9-NA

Manufacturer: Cisco
Manufacturer Part #: SG500X-24MPP-K9-NA
Condition: NEW
Availability: End of Life - Stock May Be Limited
Last Day Of Support: April 30, 2023
Replacement: SG550X-24MPP-K9-NA

Cisco Small Business 500 Stackable Managed Switch - 24 x 10/100/1000 (PoE+) and 4 x 10 Gigabit SFP+ Ports - 740w PoE Budget - rack-mountable

The Cisco 500 Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price. These switches provide 24 or 48 ports of Fast Ethernet and 24 to 52 ports of Gigabit Ethernet connectivity with optional 10 Gigabit uplinks, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Cisco 500 Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements which are administered and troubleshot separately, the Cisco 500 Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. The Cisco 500 Series switch offer models which are fanless making it one of the industry's first in stackable switches, thereby delivering increased reliability, power efficiency, and minimizing noise.

Device Type Switch - 24 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.24 Mpps
Capacity ACL rules: up to 3072
MAC Address Table Size 16K entries
Jumbo Frame Support 9216 bytes
Routing Protocol RIP-2, VRRP, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Features Flow control, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), DHCP relay, IP-MAC binding, Energy Efficient Ethernet, 12MB packet buffer, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, 3 fans
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.3 in x 13.8 in x 1.7 in
Weight 10.16 lbs
Localization North America
