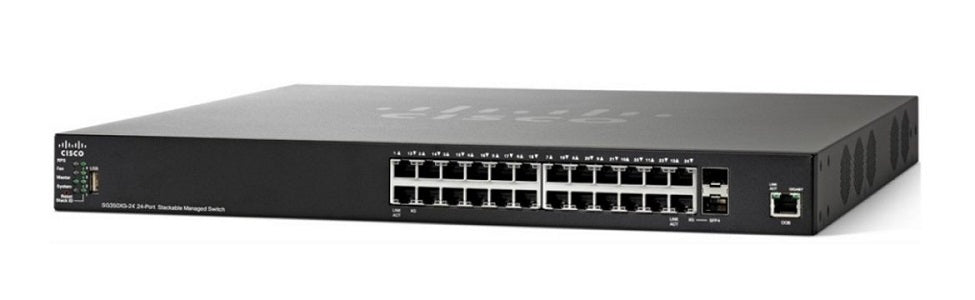

SG350X-24PD-K9-NA - Cisco SG350X-24PD Stackable Managed Switch, 20 Gigabit PoE+ with 4 2.5G PoE+ and 2 10Gig/10Gig SFP+ Combo Ports, 375w PoE - New
Manufacturer: Cisco
Manufacturer Part #: SG350X-24PD-K9-NA
Condition: NEW
Availability: Stock Available - May Be Limited
Cisco Small Business 350X Series Managed Switch - 20 x 10/100/1000 (PoE+), 2 x Combo 10 Gigabit SFP+, 2 x 10 Gigabit SFP+ and 4 x 10/100/1000/2.5G (UPOE) Ports - 375w PoE Budget - rack-mountable
The Cisco 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 24 or 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit uplinks. The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco's most cost-effective platforms with 10 Gigabit Ethernet and stacking.
Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.
A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business.
Device Type | Switch - 24 ports - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 20 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+ + 4 x 10/100/1000/2.5G (UPOE) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 375 W |
Performance | Switching capacity (64-byte packet size): 104.16 Mpps ¦ Switching capacity: 140 Gbps |
Capacity | MSTP instances: 16 ¦ Active VLANs: 4096 ¦ IPv4 routes (static): up to 8000 ¦ ACL entries: up to 2000 |
MAC Address Table Size | 64K entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR |
Remote Management Protocol | SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP |
Features | Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 24 MB packet buffer, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 3 fans, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Power | AC 120/230 V (47 - 63 Hz) |
Dimensions (WxDxH) | 17.3 in x 10.1 in x 1.7 in |
Weight | 8.8 lbs |
Localization | North America |
