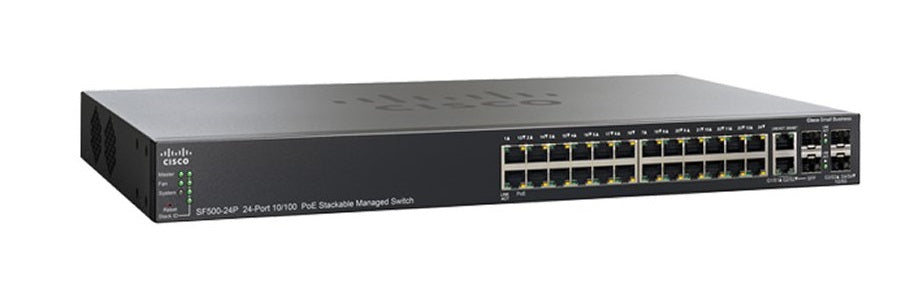

SF500-24MP-K9-NA - Cisco SF500-24MP Stackable Managed Switch, 24 10/100 PoE+ and 4 Gigabit Ethernet Ports, 370w PoE - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: SF500-24MP-K9-NA
Condition: REFURBISHED
Availability: End of Life - Stock May Be Limited
Last Day Of Support: December 31, 2022
Replacement: SF550X-24MP-K9-NA
Cisco Small Business 500 Stackable Managed Switch - 24 x 10/100 (PoE+) and 2 x combo Gigabit SFP with 2 x SFP Ports - 375w PoE Budget - rack-mountable
The Cisco 500 Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price. These switches provide 24 or 48 ports of Fast Ethernet and 24 to 52 ports of Gigabit Ethernet connectivity with optional 10 Gigabit uplinks, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.
Cisco 500 Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements which are administered and troubleshot separately, the Cisco 500 Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network. The Cisco 500 Series switch offer models which are fanless making it one of the industry's first in stackable switches, thereby delivering increased reliability, power efficiency, and minimizing noise.
Device Type | Switch - 24 ports - managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Fast Ethernet |
Ports | 24 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 375 W |
Performance | Switching capacity: 28.8 Gbps ¦ Forwarding performance (64-byte packet size): 9.52 Mpps |
Capacity | ACL rules: up to 2048 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | Static IPv4 routing, static IPv6 routing, CIDR |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Features | Flow control, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), DHCP relay, IP-MAC binding, Energy Efficient Ethernet, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), 8MB packet buffer, GARP VLAN Registration Protocol (GVRP), DiffServ Code Point (DSCP) support, 2 fans |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 17.3 in x 10.1 in x 1.7 in |
Weight | 9.59 lbs |
Localization | North America |
