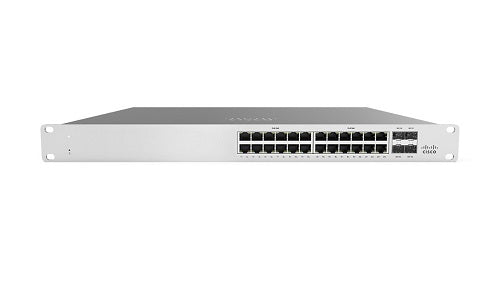

MS120-24-HW - Cisco Meraki MS120 Access Switch, 24 Ports, 1Gbe Fixed Uplinks - New

Cisco

$745.00
SKU: MS120-24-HW

Manufacturer: Cisco Meraki
Manufacturer Part #: MS120-24-HW
Condition: NEW
Availability: End of Life - Stock May Be Limited
Last Day Of Support: March 28, 2030
Replacement Part: MS130-24-HW

Cisco MS120-24-HW Meraki Cloud Managed MS120 Switch - Total 28 ports - 24 x GbE Ports with 4 x 1GbE SFP Fixed Uplinks - Fixed internal power supply - Rack Mountable

Cisco Meraki MS120-24-HW switch provides Layer 2 access switching, ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of branch and campus deployments, and is ready to support future wireless infrastructure deployments across a variety of different environments.

Device Type: Switch - 24 ports - managed

Enclosure Type: Rack-mountable 1U

Subtype: Gigabit Ethernet

Ports: 24 x 10/100/1000 + 4 x Gigabit SFP

Performance: Switching capacity: 56 Gbps | Forwarding rate: 41.67 Mpps

Capacity: VLANs supported: 4094 | MAC forwarding entries: 16000

Jumbo Frame Support: 9578 bytes

Remote Management Protocol: SNMP

Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, fanless, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)

Power: AC 120/230 V (47 - 63 Hz)

Dimensions (WxDxH): 17.3 in x 9.8 in x 1.7 in

Weight: 6.02 lbs
