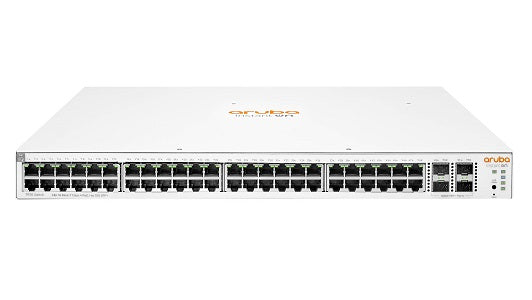

JL686A - HP Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch - Refurb'd
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL686A
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
HPE Instant On 1930 Switch - managed - 48 ports - 48 x 10/100/1000 (PoE) Gigabit Copper Ports and 4 x 1 Gigabit / 10 Gigabit SFP+ Uplink Ports - 370 W Class 4 PoE - Internal power supply - rack-mountable
This model is compatible with the AP11, AP12, AP15, AP22 and AP25 Instant On Access Points
The Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What's more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.
Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. And all of this is included in the price of the hardware--there are no hidden subscription or licensing fees.
Device Type | Switch - 52 ports - L3 - managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 370 W |
Performance | Switching capacity: 176 Gbps / Throughput: 130.95 Mpps / Latency (1 Gbps): 2.2 µs / Latency (10 Gbps): 1.2 µs |
Capacity | Link aggregation ports: 8 / IPv4 routes (static): 32 / VLANs supported: 256 / Access Control Entries (ACEs) per ACL: 480 / Packet buffer size: 1.5 MB |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 17.4 in x 12.7 in x 1.7 in |
Weight | 9.96 lbs |
