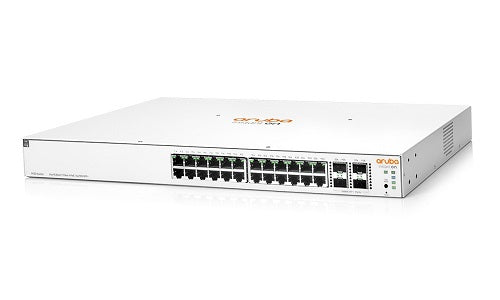

JL683A - HP Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - Refurb'd

Hewlett Packard

SKU: JL683A

Please Call for Price & Availability.

Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL683A
Condition: REFURBISHED
Availability: Call For Availability

HPE Aruba Instant On 1930 Switch - managed - 24 ports - 24 x 10/100/1000 (PoE) Gigabit Copper Ports and 4 x 1 Gigabit / 10 Gigabit SFP+ Uplink Ports - 195 W Class 4 PoE - Internal power supply - rack-mountable

The Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.

Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What's more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.

Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. And all of this is included in the price of the hardware--there are no hidden subscription or licensing fees.

Device Type Switch - 28 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE) PoE
PoE Budget 195 W
Performance Switching capacity: 128 Gbps / Throughput: 95.23 Mpps / Latency (1 Gbps): 2.4 µs / Latency (10 Gbps): 1.3 µs
Capacity Link aggregation ports: 8 / IPv4 routes (static): 32 / VLANs supported: 256 / Access Control Entries (ACEs) per ACL: 480 / Packet buffer size: 1.5 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol Static IP routing
Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Features Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 10.4 in x 1.7 in
Weight 7.72 lbs
