JL557A - HP Aruba 2930F 48G PoE+ 4SFP 740W Switch - Refurb'd
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL557A
Availability: Stock Available - May Be Limited

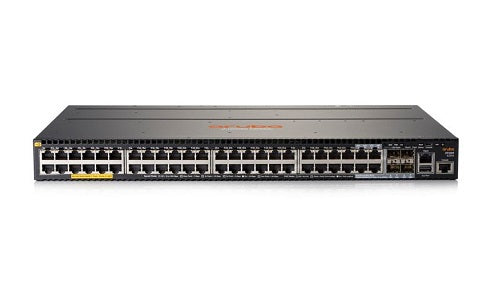

HPE Aruba 2930F 48G PoE+ 4SFP Switch - L3 - managed - 48 x 10/100/1000 (PoE+) and 4 x Gigabit SFP (uplink) - PoE+ (740 W) - rack-mountable
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and power so are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.
A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning.
|Device Type||Switch - 48 ports - L3 - managed - stackable|
|Enclosure Type||Rack-mountable 1U|
|Ports||48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)|
|Power Over Ethernet (PoE)||PoE+|
|PoE Budget||740 W|
|Performance||Throughput: 77.4 Mpps / Switching capacity: 104 Gbps / Latency (1 Gbps): 3.8 µs|
|Capacity||Jumbo frame size: 9220 / IPv4 routing table entries: 10000 / IPv6 routing table entries: 5000|
|MAC Address Table Size||32K entries|
|Routing Protocol||OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR|
|Remote Management Protocol||SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON|
|Features||Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II|
|Compliant Standards||IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX|
|Power||AC 120/230 V (50/60 Hz)|
|Dimensions (WxDxH)||17.4 in x 12 in x 1.7 in|
