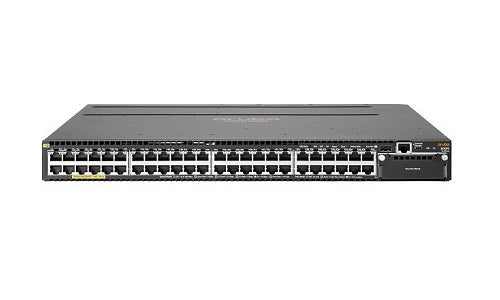

JL428A - HP Aruba 3810M 48G PoE+ 4SFP+ 680W Switch - New
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL428A
Availability: Stock Available - May Be Limited
HPE Aruba 3810M 48G PoE+ 4SFP+ 680W Switch - managed - 48 x RJ-45 autosensing 10/100/1000 PoE+ ports - Includes: 1 x Aruba 3810 Switch Fan Tray (JL088A), 1 x Aruba 3810M 4SFP+ Module (JL083A) and 1 x Aruba Aruba X372 54VDC 680W Power Supply (JL086A) - rack mountable
The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed access points and IoT devices, this advanced Layer 3 network switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.
A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for the latest applications. The 3810 delivers resiliency and scalability via innovative backplane stacking technology and redundant, hot-swappable power supplies all in a convenient 1U form factor. It supports an advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Dynamic Segmentation, robust QoS, and policy-based routing are included with no software licensing.
Easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support.
|Device Type||Switch - 48 ports - L3 - managed - stackable|
|Enclosure Type||Rack-mountable 1U|
|Ports||48 x 10/100/1000 (PoE+)|
|Power Over Ethernet (PoE)||PoE+|
|Performance||Latency (1000Base-T): 2.8 µs / Latency (10 Gbps): 1.8 µs / Latency (40 Gbps): 1.5 µs / Throughput (64-byte packet size): up to 190.5 Mpps / Routing/switching capacity: 320 Gbps / Switching fabric bandwidth: 338 Gbps|
|Capacity||IPv4 routing table entries: 10000 / IPv6 routing table entries: 5000|
|MAC Address Table Size||64K entries|
|Jumbo Frame Support||Yes|
|Routing Protocol||OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)|
|Remote Management Protocol||SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON|
|Features||ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP)|
|Compliant Standards||IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at|
|Power||DC 54 V|
|Environmental Standards||ENERGY STAR Qualified|
|Dimensions (WxDxH)||17.4 in x 17 in x 1.7 in|
