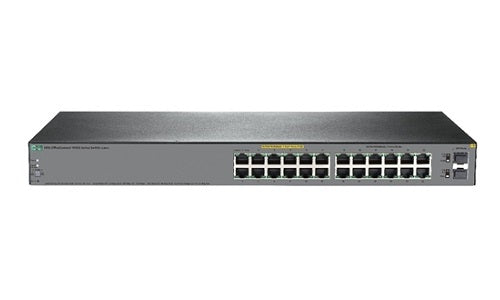

JL384A - HP OfficeConnect 1920S 24G 2SFP PPoE+ 185W Switch - Refurb'd
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL384A
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
HPE OfficeConnect 1920S 24G 2SFP PPoE+ 185W - switch - 24 ports - smart - rack-mountable
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24-ports. All ports provide non-blocking Gigabit performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available.
The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products. These switches provide a great value, and includes features to satisfy even the most advanced small business networks. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1920S Switch.
| Device Type | Switch - 24 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 185 W |
| Performance | Throughput: 38.6 Mpps / Switching capacity: 52 Gbps / Latency (100 Mbps): 7 µs / Latency (1000Base-T): 2 µs |
| Capacity | IPv4 routing table entries: 32 |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Features | Flow control, full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, SNTP support, Quality of Service (QoS), DHCP server, fanless, LLDP support, Link Aggregation Control Protocol (LACP), 2MB packet buffer, side to side airflow, DiffServ Code Point (DSCP) support, Protocol-based VLANs support, 3MB packet buffer, power-saving mode, Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120 V (60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 9.7 in x 1.7 in |
| Weight | 7.3 lbs |
