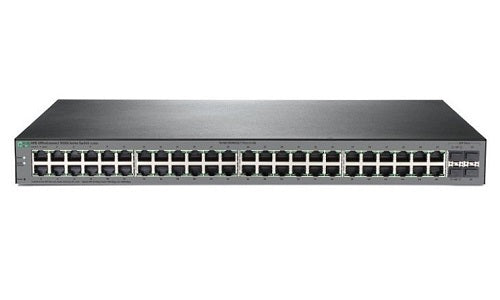

JL382A - HP OfficeConnect 1920S 48G 4SFP Switch - Refurb'd
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL382A
Availability: Stock Available - May Be Limited
HPE OfficeConnect 1920S 48G 4SFP - switch - 48 ports - managed - rack-mountable
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
The series consists of seven switches including 8- 24- and 48-port Gigabit Ethernet switches and 8-, 24- and 48-port PoE+ models of which half the ports are POE+ capable. An additional 24-port PoE+ model is available that provides PoE+ on all 24-ports. All ports provide non-blocking Gigabit performance. Some models include SFP ports for fiber connectivity and the 8-, 24- and 48-port non PoE+ models are fanless, making them ideal for office deployments. All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available.
The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products. These switches provide a great value, and includes features to satisfy even the most advanced small business networks. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols. HPE OfficeConnect 1920S Switch.
|Device Type||Switch - 48 ports - L3 - managed|
|Enclosure Type||Rack-mountable 1U|
|Ports||48 x 10/100/1000 + 4 x 100/1000 SFP|
|Performance||Latency (100 Mbps): 7 µs / Latency (1 Gbps): 2 µs / Throughput: up to 77.3 Mpps / Routing/switching capacity: 104 Gbps|
|Capacity||Routing table entries: 32|
|MAC Address Table Size||16000 entries|
|Jumbo Frame Support||9216 bytes|
|Routing Protocol||IGMP, static IPv4 routing|
|Remote Management Protocol||SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS|
|Features||Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), fanless, DHCP relay, DHCP client, port isolation, Class of Service (CoS), 1.5MB packet buffer, Link Aggregation, Network Timing Protocol (NTP), LLDP-MED|
|Compliant Standards||IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s|
|Power||AC 120/230 V (50/60 Hz)|
|Dimensions (WxDxH)||17.4 in x 9.7 in x 1.7 in|
