JL171A - HP OfficeConnect 1850 48G 4XGT Switch - Refurb'd

Hewlett Packard


Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL171A
Availability: End of Life - Stock May Be Limited
Last Day Of Support: October 31, 2019
Replacement: JG961A

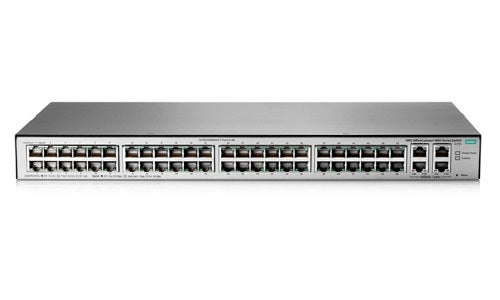

HPE OfficeConnect 1850 48G 4XGT Switch - 48 ports - managed - 48 x RJ-45 autosensing 10/100/1000 ports, 4 x RJ-45 1/10GBASE-T ports - rack-mountable

HPE OfficeConnect 1850 Switch Series devices are basic smart managed, fixed configuration Gigabit plus 10 Gigabit Ethernet Layer 2 switches designed for small businesses looking for high performance in an easy-to-administer solution. The series is part of the HPE OfficeConnect portfolio of small business networking products.

These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down. All models include variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption by the switch.

Device Type Switch - 48 ports - managed
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10Base-T
Performance Throughput: 131 Mpps / Switching capacity: 176 Gbps / Latency (100 Mbps): 9.7 µs / Latency (1000Base-T): 3.7 µs / Latency (10 Gbps): 3.7 µs
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, SNMP 2c, HTTPS
Features Full duplex capability, layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 3MB packet buffer, Network Timing Protocol (NTP)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 9.7 in x 1.7 in
Weight 7.05 lbs
