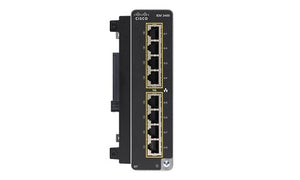

IEM-3400-8T - Cisco Catalyst IE3400 Expansion Module, 8 GE Ports - New
Manufacturer: Cisco
Manufacturer Part #: IEM-3400-8T
Condition: NEW
Availability: Stock Available - May Be Limited
Cisco Catalyst Industrial Ethernet 3400 Expansion Module - Rugged Series - 8 Ports - 8 x 10/100/1000 RJ45 Copper Ports - for the Catalyst IE3400 Rugged Series
The Cisco Catalyst IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form-factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Ports | Gigabit Ethernet x 8 |
| Dimensions (WxDxH) | 2.4 in x 5.3 in x 6 in |
| Weight | 31.04 oz |
| Cabling Type | Ethernet 1000Base-T |
| Data Link Protocol | GigE |
| Capacity | IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ Spanning Tree Protocol instances: 128 ¦ ACL: 1500 |
| MAC Address Table Size | 8000 entries |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP |
| RAM | 4 GB |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| Power | DC 9.6 - 60 V |
| Designed For | Catalyst IE3400 Rugged Series |
