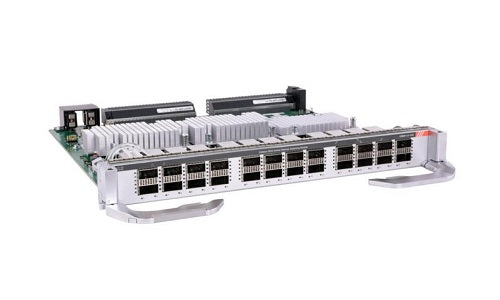

C9600-LC-24C - Cisco Catalyst 9600 Line Card - New
Manufacturer Part #: C9600-LC-24C
Availability: Stock Available - May Be Limited
Cisco Catalyst 9600 Series Line Card - Up to 24 ports of 40 GE or 12 ports of 100 GE nonblocking - plug-in module
Catalyst 9600 Series Switches provide security features that protects the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9600 Series switches give you what you need now with investment protection on future innovations.
As the industry's first purpose-built 40 and 100 Gigabit Ethernet line of modular switches targeted for the enterprise campus, Catalyst 9600 Series switches deliver unmatched table scale (MAC, route, and Access Control List [ACL]) and buffering for enterprise applications. The Cisco Catalyst 9606R chassis is hardware ready to support a wired switching capacity of up to 25.6 Tbps, with up to 6.4 Tbps of bandwidth per slot. Cisco Catalyst 9600 Series switches support granular port densities that fit diverse campus needs, including nonblocking 40 and 100 Gigabit Ethernet (GE) Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10, and 25 GE Small Form-Factor Pluggable Plus (SFP, SFP+, SFP28) and 10, 5, 2.5 and 1 Gigabit Ethernet (GE) and 100, 10 Megabit (Mbps) RJ45 copper ports. The switches also support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9600 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
|Device Type||Switch - 24 ports|
|Enclosure Type||Plug-in module|
|Ports||24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28|
|Performance||Bandwidth: 2.4 Tbps|
|Features||IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Media Access Control Security (MACsec)|
|Compliant Standards||IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x|
|Dimensions (WxDxH)||15 in x 15.7 in x 1.7 in|
|System Requirements||Cisco IOS XE 16.11.1|
