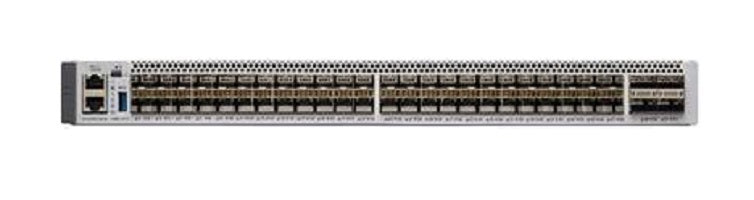

C9500-48X-A - Cisco Catalyst 9500 Ethernet Switch - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: C9500-48X-A
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
Cisco Catalyst 9500 - Network Advantage - Bundle - switch - 48 ports - managed - rack-mountable - with Cisco Catalyst 9500 8 x 10GE Network Module
The Cisco Catalyst 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Cisco Catalyst 9500 Series is the industry's first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
Device Type: Switch - 48 ports - L3 - managed - stackable - with Cisco Catalyst 9500 8 x 10GE Network Module (C9500-NM-8X)
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+
Performance: Switching capacity (full duplex): 480 Gbps | Forwarding rate: 720 Mpps
Capacity: Indirect IPv4 routes: 64000 | Host IPv4 routes: 32000 | Indirect IPv6 routes: 32000 | Host IPv6 routes: 16000 | Multicast scale: 48000 | QoS ACL scale: 18000 | Security ACL scale: 18000 | FNF entries: 512000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF
Features: NAT support, IPv6 support, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), 802.1x authentication, MACsec support, Control plane protection (CoPP), VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Cisco StackWise Virtual, First Hop Security (FHS)
Compliant Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 21.5 in x 1.7 in
Weight: 25.75 lbs
