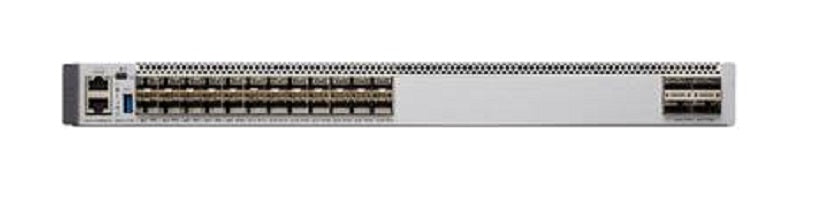

C9500-24Y4C-E - Cisco Catalyst 9500 Ethernet Switch - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: C9500-24Y4C-E
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
Cisco Catalyst 9500 - Network Essentials - switch - 24 ports - managed - rack-mountable
The Cisco Catalyst 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Cisco Catalyst 9500 Series is the industry's first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 24 x 25 Gigabit SFP28 |
| Performance | Switching capacity (full duplex): 1.6 Tbps ¦ Forwarding rate: 1 Bpps |
| Capacity | Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
| Features | DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 18 in x 1.7 in |
| Weight | 20.99 lbs |
