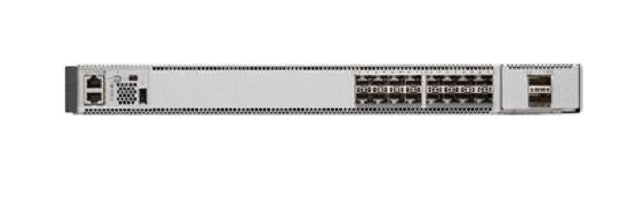

C9500-16X-A - Cisco Catalyst 9500 Ethernet Switch - New

Cisco

$7,449.00
SKU: C9500-16X-A

Manufacturer:

Cisco

Manufacturer Part #:

 C9500-16X-A

Condition:

NEW

Availability:

Stock Available



Product Overview

The Cisco Catalyst 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Cisco Catalyst 9500 Series is the industry’s first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Product Description Cisco Catalyst 9500 - Network Advantage - switch - 16 ports - managed - rack-mountable
Device Type Switch - 16 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance Switching capacity (full duplex): up to 480 Gbps ¦ Forwarding rate: up to 360 Mpps
Capacity Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 80000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 40000 ¦ Multicast scale: 16000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size 64K entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF
Features DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Yes
Dimensions (WxDxH) 1.7 in x 17.5 in x 21.5 in
Weight 23.59 lbs
