C9500-12Q-A - Cisco Catalyst 9500 Ethernet Switch - Refurb'd

Cisco

$1,875.00
SKU: C9500-12Q-A

Our Product GuarantyEquipment Guaranty

Manufacturer: Cisco
Manufacturer Part #: C9500-12Q-A
Condition: REFURBISHED
Availability: Stock Available - May Be Limited

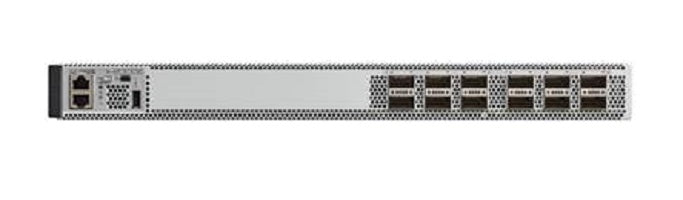

Cisco Catalyst 9500 - Network Advantage - switch - 12 ports - managed - rack-mountable

The Cisco Catalyst 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Cisco Catalyst 9500 Series is the industry's first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Device Type: Switch - 12 ports - L3 - managed - stackable

Enclosure Type: Rack-mountable 1U

Subtype: 40 Gigabit Ethernet

Ports: 12 x 40 Gigabit QSFP

Performance: Switching capacity (full duplex): 480 Gbps | Forwarding rate: 720 Mpps

Capacity: Indirect IPv4 routes: 64000 | Host IPv4 routes: 32000 | Indirect IPv6 routes: 32000 | Host IPv6 routes: 16000 | Multicast scale: 48000 | QoS ACL scale: 18000 | Security ACL scale: 18000 | FNF entries: 512000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 4000

MAC Address Table Size: 64K entries

Jumbo Frame Support: 9198 bytes

Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF

Features: DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba

Power: AC 120/230 V (50 - 60 Hz)

Power Redundancy: Yes

Dimensions (WxDxH): 17.5 in x 21.5 in x 1.7 in

Weight: 25.75 lbs
