C9407R-96U-BNDL-A - Cisco Catalyst 9407 Series Bundle - New
Manufacturer: Cisco
Manufacturer Part #: C9407R-96U-BNDL-A
Condition: NEW
Availability: Stock Available - May Be Limited

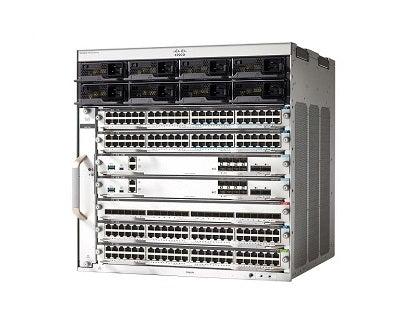

Cisco C9407R-96U-BNDL-A is a Catalyst 9400 Series 7 Slot Chassis Bundle with 2 x C9400-LC-48U line cards - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer Supported - Modular - 10U High - Rack-mountable
The Cisco Catalyst C9407R-96U-BNDL-A switch is Cisco's leading modular enterprise switching access, distribution and core platform built for security, IoT and cloud. These switches form the foundational building block for SD-Access - Cisco's lead enterprise architecture.
The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9 Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). The Catalyst C9407R-96U-BNDL-A delivers state-of-the-art High Availability (HA) with capabilities like Cisco StackWise Virtual technology with In-service-software-upgrade (ISSU), SSO/NSF, uplink resiliency, N+1/N+N redundancy for power supplies.
The Cisco Catalyst 9400 series is enterprise optimized with an innovative dual-serviceable fan tray design, side to side airflow and is closet-friendly with ~16 inch depth.
A single system can scale up to 384 access ports with your choice of 1G copper, mGig, UPoE, PoE+, 1G Fiber options. The availability of 1/10 G fiber ports facilitate aggregation of existing small form factor fixed access switches. The addition of the new SUP-1XL-Y supervisor allows unique investment protection through 25 G uplink connectivity option which is becoming a popular alternative to 10 G in the core.
The C9407R-96U-BNDL-A also supports advanced routing and infrastructure services, SD-Access capabilities and network system virtualization. These features enable optional placement of the platform in the core and aggregation layers of small to medium-sized campus environments.
Device Type: Switch - 48 ports
Packaged Quantity: 2 (specifications are for single item)
Enclosure Type: Plug-in module
Ports: 48 x 10/100/1000
Power Over Ethernet (PoE): UPOE
PoE Budget: 60 W
Jumbo Frame Support: 9216 bytes
Features: Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support
Compliant Standards: IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.3az
Dimensions (WxDxH): 1.6 in x 14.9 in x 14.6 in
System Requirements: Cisco IOS XE 16.6 or later
