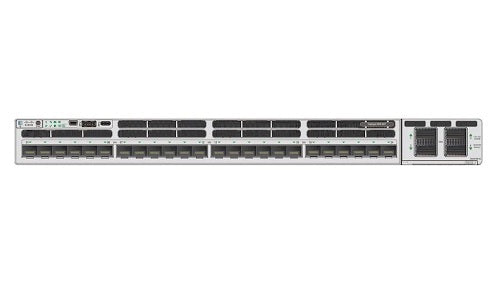

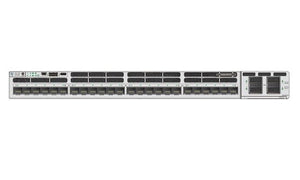

C9300X-24HX-E - Cisco Catalyst 9300X Switch 24 Port mGig UPoE+, Network Essentials - New

Cisco

$9,685.00
SKU: C9300X-24HX-E

Our Product GuarantyEquipment Guaranty

Manufacturer: Cisco
Manufacturer Part #: C9300X-24HX-E
Condition: NEW
Availability: Stock Available - May Be Limited

Cisco Catalyst 9300X Modular Uplink Switch with base Network Essentials license - stackable 24 port mGig UPoE+ switch (24 x 10G Multigigabit ports; supports optional uplink network modules) - has 2 FRU power supply module slots (ships with 1 default power supply); 1100 watt default primary AC power supply is PWR-C1-1100WAC-P with a PoE budget of 735 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-1T stacking option

The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. These switches are also equipped with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Device Type: Switch - 24 ports - L3 - managed - stackable

Enclosure Type: Rack-mountable

Subtype: 10 Gigabit Ethernet

Ports: 24 x 100/1000/2.5G/5G/10GBase-T (UPOE+)

Power Over Ethernet (PoE): UPOE+

PoE Budget: 1835 W

Performance: Switching capacity: 880 Gbps | Switching capacity with stacking: 1880 Gbps | Forwarding rate: 327.38 Mpps | Forwarding rate with stacking: 1398.8 Mpps

Capacity: IPv4 routing table entries: 39000 | Multicast routes: 8000 | QoS scale entries: 4000 | ACL scale entries: 8000 | IPv6 routing table entries: 19500 | Packet buffer size: 16 MB | FNF entries: 64000 | VLAN IDs: 4094 | Switched virtual interfaces (SVIs): 1000

MAC Address Table Size: 32000 entries

Jumbo Frame Support: 9198 bytes

Routing Protocol: RIP, RIP-1, RIP-2, VRRP, PIM-SM, static IP routing, GRE, PIM-SSM, policy-based routing (PBR), RIPng, MSTP, STP, LISP

Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG

Features: VPN support, full duplex mode, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Ethernet Virtual Private Network (EVPN), Ethernet over MPLS (EoMPLS), Blue Beacon LED, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Cisco Discovery Protocol (CDP), mDNS, Secure Unique Device Identification (SUDI), Preboot Execution Environment, Cisco StackWise-1T technology

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz

Power: AC 115-240 V (50 - 60 Hz)

Power Redundancy: Optional

Dimensions (WxDxH): 17.5 in x 20.6 in x 1.7 in

Weight: 13.78 lbs
