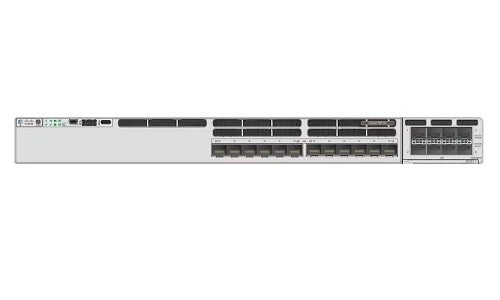

C9300X-12Y-A - Cisco Catalyst 9300X Switch 12 Port 25G SFP28, Network Advantage - New
Manufacturer: Cisco
Manufacturer Part #: C9300X-12Y-A
Condition: NEW
Availability: Stock Available - May Be Limited
Cisco Catalyst 9300X Modular Uplink Switch with base Network Advantage license - stackable 12 port 25G SFP28 switch (12 x 25G/10G/1G SFP28 ports; supports optional uplink network modules) - has 2 FRU power supply module slots (ships with 1 default power supply); 715 watt default primary AC power supply is PWR-C1-715WAC-P - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-1T stacking option
The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. These switches are also equipped with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Device Type: Switch - 12 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 25 Gigabit Ethernet
Ports: 12 x 1/10/25 Gigabit SFP28
Performance: Switching capacity: 1000 Gbps | Switching capacity with stacking: 2000 Gbps | Forwarding rate: 744.04 Mpps | Forwarding rate with stacking: 1488 Mpps
Capacity: IPv4 routing table entries: 39000 | Flexible NetFlow entries: 64000 | Direct IPv4 routes: 24000 | Indirect IPv4 routes: 15000 | IPv6 routing table entries: 19500 | VLAN IDs: 4094 | Switched virtual interfaces (SVIs): 1000 | Multicast routing flow table: 8000 | QoS scale entries: 4000 | ACL scale entries: 5000 | PVST instances: 300 | STP Virtual Ports for PVST: 13000 | STP Virtual Ports for MST: 13000 | Routed ports: 448
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.5 in x 16.1 in x 1.7 in
