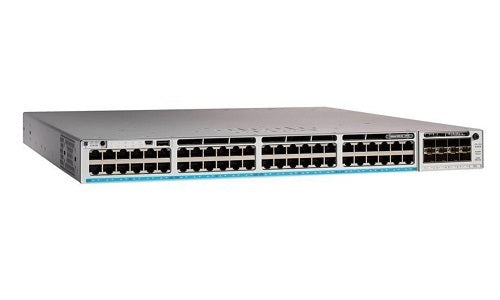

C9300LM-48U-4Y-E - Cisco Catalyst 9300L Mini Switch 48 Port UPoE, 4x25G Fixed Uplinks, Network Essentials - New


SKU: C9300LM-48U-4Y-E

Manufacturer: Cisco
Manufacturer Part #: C9300LM-48U-4Y-E
Condition: NEW
Availability: Stock Available - May Be Limited

Cisco Catalyst 9300 Mini Fixed Uplink Switch with base Network Essentials license - stackable 48 port UPoE switch (48 x 1Gig ports; with 4 x 25G fixed uplinks) - has 2 FRU power supply module slots (ships with 1 default power supply); 1000 watt default primary AC power supply is PWR-C6-1KWAC with a PoE budget of 790 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-320 stacking option

The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. These switches are also equiped with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Device Type: Switch - 48 ports - L3 - managed - stackable

Enclosure Type: Rack-mountable

Subtype: Gigabit Ethernet

Ports: 48 x 10/100/1000 (UPOE) + 4 x 25 Gigabit SFP (uplink)

Power Over Ethernet (PoE): UPOE

Performance: Stacking bandwidth: 320 Gbps | Switching capacity: 296 Gbps | Switching capacity with stacking: 616 Gbps | Forwarding rate: 220.22 Mpps | Forwarding rate with stacking: 458.3 Mpps

Capacity: IPv4 routes: 32000 | IPv6 routes: 16000 | Multicast scale: 8000 | QoS scale entries: 5120 | ACL scale entries: 5120 | Buffer capacity (MB): 16 | FNF entries: 64000 | VLAN IDs: 4094 | Switched virtual interfaces (SVIs): 1000 | Routed ports: 416 | OSPF routes: 1000

MAC Address Table Size: 32000 entries

Jumbo Frame Support: 9198 bytes

Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG

Features: Access Control List (ACL) support, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), NetFlow, Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, hot swappable 3 fans, built-in ASIC, Control plane protection (CoPP), Software Defined Networking (SDN), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Media Access Control Security (MACsec), Cisco IP Service-Level Agreement (IP SLA), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology, Cisco Discovery Protocol (CDP), Preboot Execution Environment

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz, IEEE 802.3bt, Wi-Fi CERTIFIED 6

Power: AC 100-240 V (50 - 60 Hz)

Power Redundancy: Optional

Dimensions (WxDxH): 17.5 in x 13.1 in x 1.7 in

Weight: 12.02 lbs
