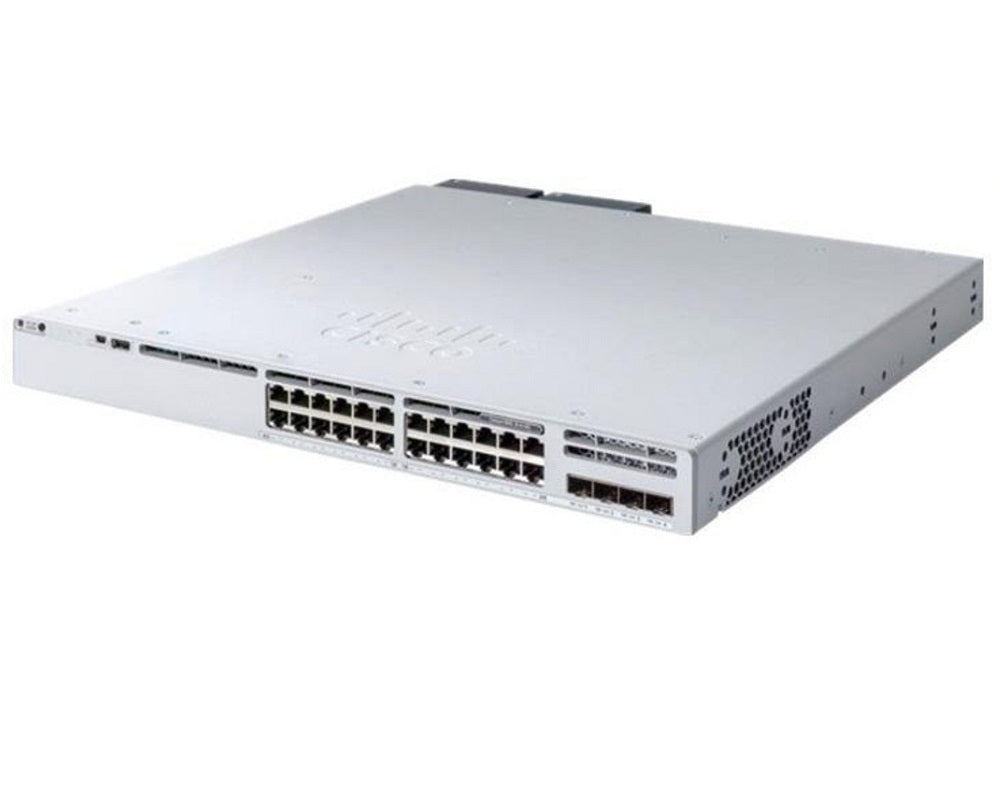

C9300L-24UXG-4X-E - Cisco Catalyst 9300 Switch, Network Essentials, 24 Fixed UPoE with 4 10Gig SFP Uplink Ports - Refurb'd

Cisco

SKU: C9300L-24UXG-4X-E

Please Call for Price & Availability.

Manufacturer: Cisco
Manufacturer Part #: C9300L-24UXG-4X-E
Condition: REFURBISHED
Availability: Call For Availability

Cisco Catalyst 9300L Switch - Network Advantage - Layer 3 Switching - managed - 24 Ports - 8 x mGig (100M/1G/2.5G/5G/10G) and 16 x 10/100/1000 (UPOE) Ports with 4 x 10 Gigabit SFP+ Uplink Ports - 880w PoE Budget - rack-mountable

Product Description Cisco Catalyst 9300L - Network Essentials - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) UPOE
PoE Budget 880 W
Performance Switching capacity: 272 Gbps ¦ Switching capacity with stacking: 592 Gbps ¦ Forwarding rate: 202.38 Mpps ¦ Forwarding rate with stacking: 440.47 Mpps
Capacity IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Features Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 1.7 in x 19.2 in
Weight 15.72 lbs
