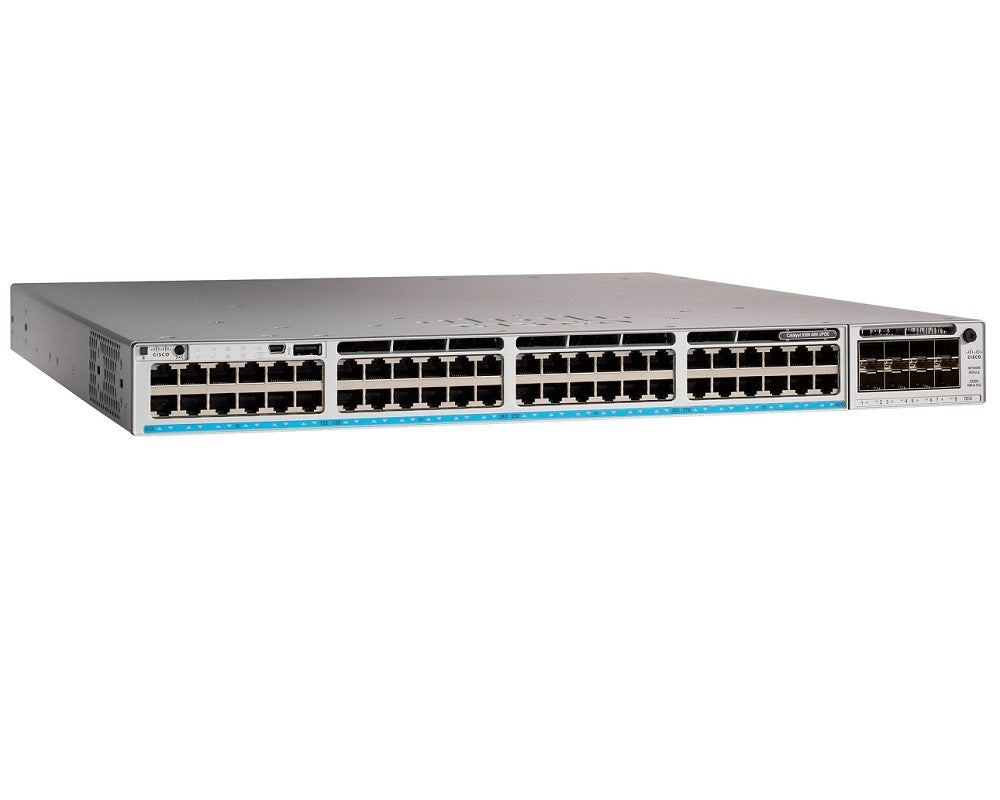

C9300-48UB-E - Cisco Catalyst 9300 Switch, Network Essentials, Higher Scale 48 Gigabit UPoE Ports - Refurb'd

C9300-48UB-E - Cisco Catalyst 9300 Switch, Network Essentials, Higher Scale 48 Gigabit UPoE Ports - Refurb'd
C9300-48UB-E - Cisco Catalyst 9300 Switch, Network Essentials, Higher Scale 48 Gigabit UPoE Ports - Refurb'd

Cisco

SKU: C9300-48UB-E

Please Call for Price & Availability.

Manufacturer: Cisco
Manufacturer Part #: C9300-48UB-E
Condition: REFURBISHED
Availability: Call For Availability

Cisco Catalyst 9300 Switch - Network Essentials - Layer 3 Switching - managed - 48 x 10/100/1000 (UPOE) - 822w PoE Budget - rack-mountable

Cisco Catalyst 9300 higher scale models have a deeper buffer to address the requirements of rich multi-media lossless content delivery and large routing tables in a fixed access solution with a wide range of uplink choices for deployment flexibility.

Product Description Cisco Catalyst 9300 (Higher Scale) - Network Essentials - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 822 W
Performance Switching capacity: 256 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Switching capacity with stacking: 736 Gbps ¦ Forwarding rate: 190.48 Mpps ¦ Forwarding rate with stacking: 547.62 Mpps
Capacity IPv4 routing table entries: 64000 ¦ IPv6 routing table entries: 32000 ¦ Flexible NetFlow entries: 128000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Packet buffer size: 32 MB
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 19.2 in x 1.7 in
Weight 17.02 lbs
