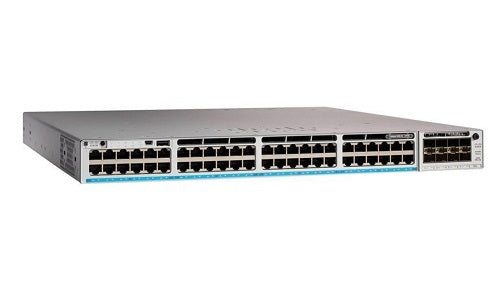

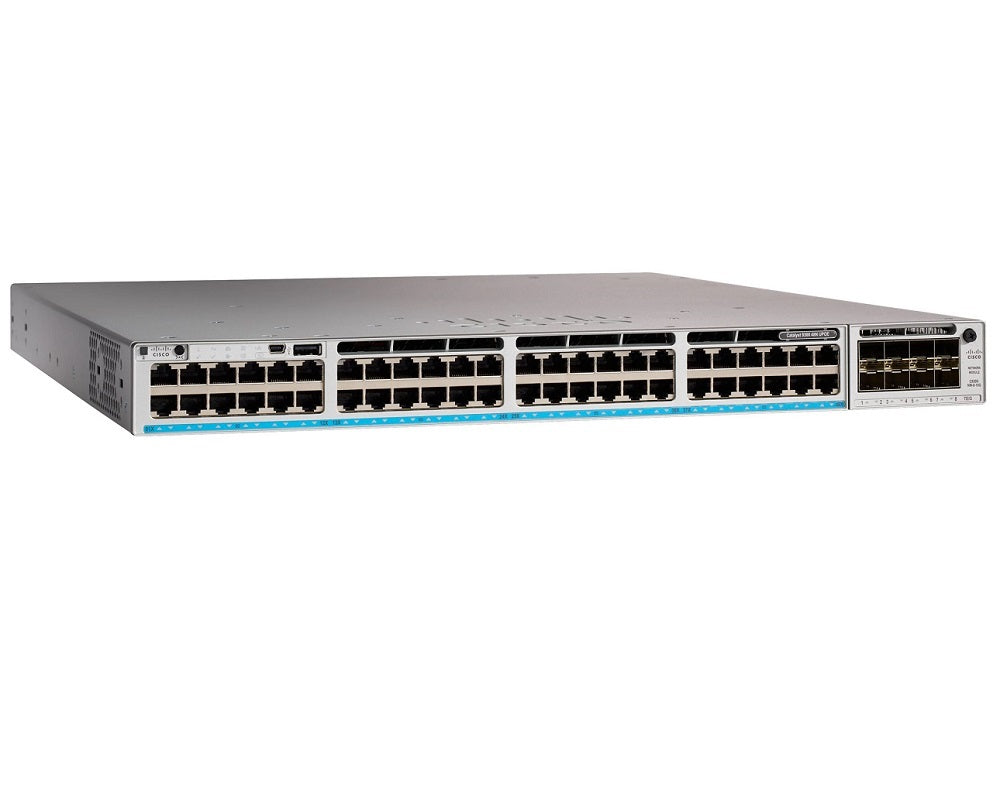

C9300-48U-E-UL - Cisco Catalyst 9300 Switch 48 Port UPoE, Network Essentials, UL1069 Compatible - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: C9300-48U-E-UL
Condition: REFURBISHED
Availability: Call For Availability
Cisco Catalyst 9300 Modular Uplink Switch with base Network Essentials license - stackable 48 port UPoE switch (48 x 1G copper ports; supports optional uplink network modules) - Compatible with UL1069 Standards - has 2 FRU power supply module slots (ships with 1 default power supply); 1100 watt default primary AC power supply is PWR-C1-1100WAC-P with a PoE budget of 822 watt - comes with 3 field-replaceable fans and support (N+1) redundancy - Supports the StackWise-480 stacking option
The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. These switches are also equipped with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE): UPOE
PoE Budget: 822 W
Performance: Switching capacity: 128 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 190.48 Mpps
Capacity: IPv4 routing table entries: 32000 | IPv6 routing table entries: 16000 | Flexible NetFlow entries: 64000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: Trunking, full duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 17.5 in x 1.7 in
Weight: 17.02 lbs
System Requirements: Cisco IOS Universal
