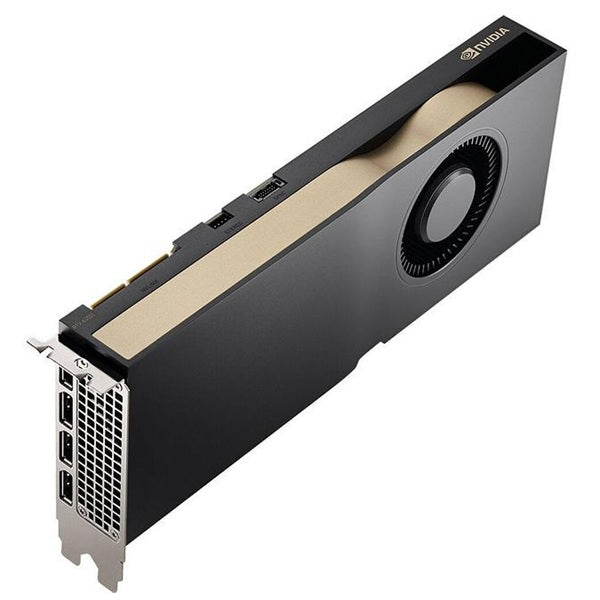

900-5G132-2270-000 - NVIDIA RTX A5500 Workstation Graphics Card, 24GB GDDR6 ECC - New

Manufacturer: Nvidia
Manufacturer Ordering Part #: 900-5G132-2270-000
Condition: NEW
Availability: Contact / Request A Quote For Current Availability

NVIDIA RTX A5500 Ampere-architecture professional workstation graphics card - 24GB GDDR6 ECC Memory - Memory Interface: 384-bit - Display Ports: 4x DisplayPort 1.4 - Graphic Bus: PCIe 4.0 x16

The NVIDIA RTX A5500 is a high-performance workstation graphics card that gives you the performance and capabilities required for demanding multi-application workflows. Built on the NVIDIA Ampere architecture, the RTX A5500 combines 80 second-generation RT Cores, 320 third-generation Tensor Cores, and 10,240 CUDA cores with 24 GB of graphics memory with error correction code (ECC) to supercharge rendering, Al, graphics, and compute tasks. Configure multiple GPUs1 with NVIDIA NVLink 2 to scale memory and performance for memory-intensive tasks, such as large models, ultra-high resolution rendering, and complex compute workloads. With support for NVIDIA RTX Virtual Workstation (vWS) software, the RTX A5500 is ready to handle the most complex design, visualization, and compute work -- from anywhere.

Architecture: NVIDIA Ampere

CUDA Cores: 10,240

Tensor Cores: 320

RT Cores: 80

Single-Precision Performance: 34.1 TFLOPS

GPU Memory: 24 GB GDDR6 with ECC

Memory Interface: 384-bit

Memory Bandwidth: 768 GB/sec

Graphics Bus: PCI Express 4.0 x16

Form Factor: 4.4" H x 10.5" L, Dual Slot

Max Power Consumption: 230 W

Power Connector: 1x 8-pin PCIe

Display Connectors: 4x DisplayPort 1.4a

Thermal Solution: Active fansink

Width: 111.1 Mm

Height: 286.6 Mm
