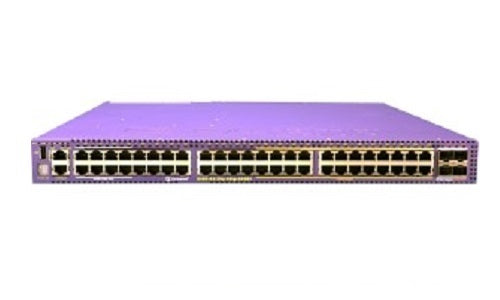

16757 - Extreme Networks X460-G2-24t-24ht-10GE4-Base Advanced Aggregation Switch, 24 Full/24 Half Duplex Ports - Refurb'd
Manufacturer: Extreme Networks
Manufacturer Part #: 16757
Model #: X460-G2-24t-24ht-10GE4-Base
Condition: REFURBISHED
Availability: Call For Availability
ExtremeSwitching X460-G2 Scalable Fixed-form, Advanced Aggregation Switch with ExtremeXOS modular operating system - 24 x 10/100/1000BASE-T full duplex, 24 x 10/100/1000BASE-T full/half duplex and 4 x 1000/10GBaseX unpopulated SFP+ ports - Unpopulated: rear VIM Slot, rear Timing Slot, 2 x PSU slots and fan module slot
The ExtremeSwitching X460-G2 series is based on Extreme Networks ExtremeXOS, a highly-resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology. The X460-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to edge and aggregation deployments.
The X460-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud IQ and Extreme Management Center for either cloud-based or on-premise oversight and configuration. The X460-G2 also supports role-based policies and Fabric Attach for secure, automated access to specific network resources and applications.
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x SFP+ |
| Performance | Aggregate switching bandwidth: 336 Gbps ¦ Forwarding performance: 250 Mpps ¦ Latency (64-byte packets): 4 µs |
| Capacity | Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8 ¦ Longest prefix match (LPM) entries (IPv6): 6000 ¦ Longest prefix match (LPM) entries (IPv4): 12000 |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Traffic shaping, DoS attack prevention, half duplex mode, full duplex mode, CLEAR-Flow Security Rules Engine, front to back airflow, 4MB packet buffer |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 16.9 in x 1.7 in |
| Weight | 13.29 lbs |
