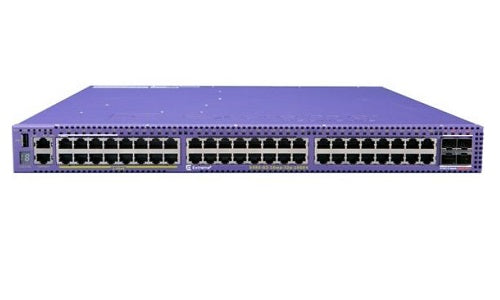

16720 - Extreme Networks X460-G2-16mp-32p-10GE4 Advanced Aggregation Switch, 16 2.5GbE/32 PoE+ Ports/4 SFP - Refurb'd
Please Call for Price & Availability.
Manufacturer: Extreme Networks
Manufacturer Part #: 16720
Model #: X460-G2-16mp-32p-10GE4
Availability: Call For Availability
ExtremeSwitching X460-G2 Scalable Fixed-form, Advanced Aggregation Switch with ExtremeXOS modular operating system - 16 x 100Mb/1 .0/2.5GbE PoE+, 32 x 10/100/1000BASE-T PoE+ and 4 x 1000/10GBaseX unpopulated SFP+ ports - Unpopulated: rear VIM Slot, rear Timing Slot, 2 PSU slots and fan module slot
The ExtremeSwitching X460-G2 series is based on Extreme Networks ExtremeXOS, a highly-resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology. The X460-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to edge and aggregation deployments.
The X460-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud IQ and Extreme Management Center for either cloud-based or on-premise oversight and configuration. The X460-G2 also supports role-based policies and Fabric Attach for secure, automated access to specific network resources and applications.
|Device Type||Switch - 48 ports - managed - stackable|
|Enclosure Type||Rack-mountable 1U|
|Ports||32 x 10/100/1000 (PoE+) + 4 x SFP+ + 16 x 100/1000/2.5G (PoE+)|
|Power Over Ethernet (PoE)||PoE+|
|PoE Budget||1440 W|
|Performance||Aggregate switching bandwidth: 384 Gbps ¦ Forwarding performance: 285.7 Mpps ¦ Latency (64-byte packets): 4 µs|
|Capacity||Virtual interfaces (VLANs): 4094 ¦ QoS hardware queues per port: 8 ¦ Longest prefix match (LPM) entries (IPv6): 8000 ¦ Longest prefix match (LPM) entries (IPv4): 16000|
|MAC Address Table Size||96K entries|
|Jumbo Frame Support||9216 bytes|
|Features||Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, front to back airflow, 5MB packet buffer|
|Compliant Standards||IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az|
|Power||AC 120/230 V (50/60 Hz)|
|Dimensions (WxDxH)||17.4 in x 19.2 in x 1.7 in|
