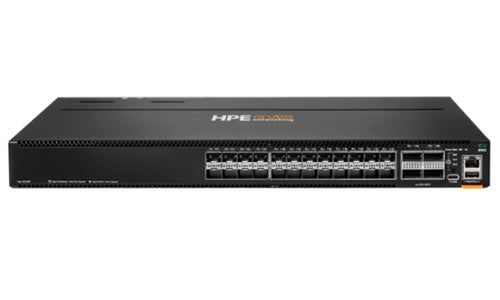

R9W87A - HPE Aruba 8100 24x10G SFP+, 4x40/100G QSFP28 Switch Bundle, Back-to-Front - New

Our Product Guaranty

Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: R9W87A
Condition: NEW
Availability: Call For Availability

HPE Aruba CX 8100 Switch - 24 x 1 GbE/10 GbE SFP/SFP+ Ports and 4 x 40 GbE/100 GbE QSFP+/QSFP28 Uplink Ports - Bundle includes field replaceable, hot swappable 2x Power Supplies (JL712A) and 3x Fan Trays (JL715A) - Back-to-Front primary airflow - Rack mountable; mounting kit must be ordered separately

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT.
The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch.

Network Device Type: Switch

Connectivity Technology: Wired

Data Transfer Rate: 100 Gbps

Data Link Protocol: Gigabit Ethernet

Processor / Type: ARM

RAM / Total Installed Size: 16 GB

Flash Memory / Installed Size: 32 GB

Networking Compliant Standards: IEEE 802.1AB-2009 IEEE 802.1ak-2007 IEEE 802.1AX-2008 Link Aggregation IEEE 802.1p Priority IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1Q VLANs

Power / Device Type: Power Supply

Media Layer Supported: Layer 2, Layer 3

Power / Installed Qty: 2

Power Consumption Operational: 120 Watt

Max Power Consumption: 375 Watt

For Use With: 100-127V, 200-240V

Power Over Ethernet (PoE) Support: None

PoE Power Consumption: None

MAC Address Table Size: 147456

Jumbo Frame Support: 9K bytes

Remote Management Protocol: SNMP; IPv6; IPv4; DHCP

Routing Protocol: RIPv2, RIPng

Authentication Method: RADIUS, TACACS+

Interfaces: 24X10G SFP+, 4X40/100G QSFP28, RJ-45 serial and USB-C console RJ-45 Ethernet port USB-Type A

SFP+ Ports: 24

Dimensions (WxDxH): 17.4 in x 16 in x 1.73 in

Weight: 18 lbs
