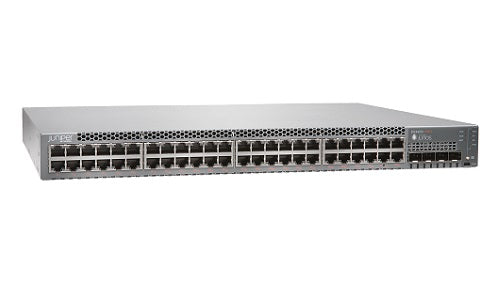

EX3400-48T - Juniper EX3400 Ethernet Switch - New

Juniper Networks

$1,675.00
SKU: EX3400-48T

Manufacturer: Juniper Networks
Manufacturer Part #: EX3400-48T
Condition: NEW
Availability: End Of Life - Inventory May Be Limited

Juniper Networks EX3400 Ethernet Switch delivers a high performance, flexible, and cost effective solution for today’s most demanding converged data, voice, and video enterprise access environments. To simplify network operations, the EX3400 is hardware-ready1 to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

Product Description Juniper TDSourcing EX Series EX3400-48T - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Performance Switching capacity (64-byte packet size): 336 Gbps ¦ Throughput: 250 Mpps
Capacity Virtual interfaces (VLANs): 4093 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ ARP entries: 8000 ¦ IPv4 hosts: 36000 ¦ IPv4 routes (Multicast): 4000 ¦ Maximum of neighboring networks: 8000 ¦ IPv6 hosts: 18000 ¦ IPv6 routes (Multicast): 2000 ¦ ACL entries: 1500 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 16 ¦ QoS hardware queues per port: 12 ¦ IGMP snooping entries: 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol IS-IS, RIP-1, RIP-2, MSDP, static IPv4 routing, static IPv6 routing, RIPng, CIDR
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, DiffServ support, store and forward, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Virtual Chassis technology, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), Cable Diagnostics Function, DHCP relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Zero Touch Auto Provisioning, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, DiffServ Code Point (DSCP) support, MACsec support, Smoothed Deficit Weighted Round Robin (SDWRR), system log, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Management Information Base (MIB) II
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1BR
Power AC 120/230 V
Power Redundancy Optional
Dimensions (WxDxH) 17.2 in x 13.8 in x 1.7 in
Weight 13.45 lbs
