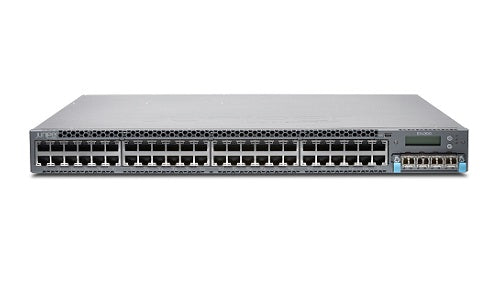

EX4300-48T-AFI - Juniper EX4300 Ethernet Switch - New

Juniper Networks

$1,925.00
SKU: EX4300-48T-AFI

Manufacturer: Juniper Networks
Manufacturer Part #: EX4300-48T-AFI
Condition: NEW
Availability: End Of Life - Inventory May Be Limited

The EX4300 line of Ethernet switches delivers the performance, flexibility, and scale required for both campus and data center Gigabit Ethernet (GbE) access switch environments. Whether deployed in a Virtual Chassis configuration or as a satellite device in a Juniper Networks Junos Fusion fabric architecture, the EX4300 delivers the operational simplicity and higher logical scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy with speed and agility to increase revenue and improve productivity

Product Description Juniper TDSourcing EX Series EX4300-48T - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 40 Gigabit QSFP+
Performance Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps
Capacity Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ IPv4 routes: 32000 ¦ Maximum of neighboring networks: 20000 ¦ IPv6 routes: 18000
MAC Address Table Size 64K entries
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, RIPng, MPLS, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI
Features Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, ASIC VPN, SNTP support, DDos attack prevention, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtual Chassis technology, Graceful Route Engine Switchover (GRES), back to front airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Deficit Weighted Round Robin (DWRR), hot swappable dual fans, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, redundant hot swappable fans, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, Multicast Source Discovery Protocol (MSDP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.3ba, ITU-T G.8032
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.4 in x 16.4 in x 1.7 in
Weight 16.09 lbs
