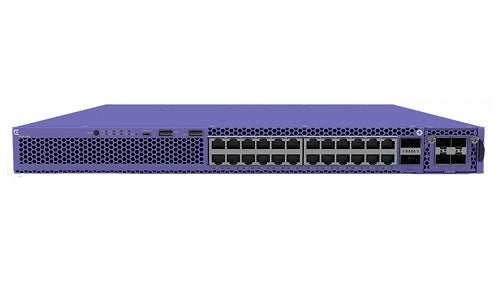

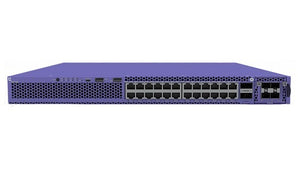

X465-24W-B2 - Extreme Networks X465 Stackable Edge Switch, 2000w PSU Bundle - Refurb'd
Manufacturer: Extreme Networks
Manufacturer Part #: X465-24W-B2
Condition: REFURBISHED
Availability: Call For Availability
ExtremeSwitching X465 Premium Stackable Edge/Aggregation Switch - 24 x 10/100/1000Base-T full / half duplex 802.3bt Type 4 (90 watt) PoE MACsec-capable ports - Includes 2 fan modules, 1 VIM5 slot and a 2000W AC PSU FB (XN-ACPWR-2000W-F) - EXOS Advanced Edge license
The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Gigabit and multi-Gigabit Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments.
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (UPOE) + 2 x 40 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 1771 W |
| Performance | Switching bandwidth: 316 Gbps ¦ Forwarding rate: 235.1 Mpps ¦ Stacking bandwidth: 160 Gbps |
| Capacity | IP multicast groups: 4000 ¦ User-created VLAN/VMANs: 4092 ¦ Policy profiles: 63 |
| MAC Address Table Size | 272K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP, BGP, PIM-SM, static IPv4 routing, static IPv6 routing, MPLS |
| Features | Half duplex mode, full duplex mode, MACsec support, 2 fans, Virtual Private LAN Service (VPLS), VXLAN tunnel endpoints (VTEP) support, Priority-Based Flow Control (PFC), flexible universal forwarding tables (UFT), Insight Architecture ready |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 19.2 in x 1.7 in |
| Weight | 17.28 lbs |
