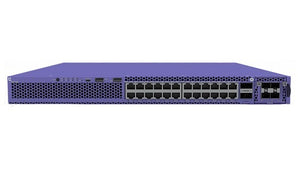

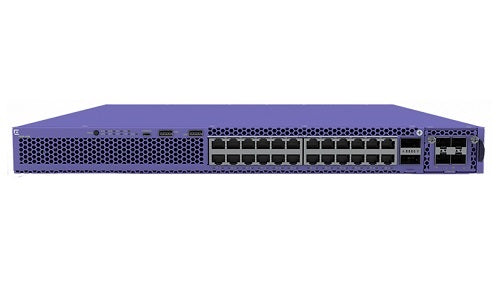

X465-24MU-B2 - Extreme Networks X465 Stackable Edge Switch, 2000w PSU Bundle - New

Extreme Networks

SKU: X465-24MU-B2

Manufacturer: Extreme Networks
Manufacturer Part #: X465-24MU-B2
Condition: NEW
Availability: Stock Available - May Be Limited

ExtremeSwitching X465 Premium Stackable Edge/Aggregation Switch - 24 x 100Mb/1Gb/2.5Gb/5Gb 802.3bt Type 3 (60 watt) PoE ports - Includes 2 x fan modules, 1 x VIM5 slot and a 2000W AC PSU FB (XN-ACPWR-2000W-F) - EXOS Advanced Edge license, Insight Architecture-ready

The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Gigabit and multi-Gigabit Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments.

Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 100/1000/2.5G/5GBase-T (UPOE) + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE) UPOE
PoE Budget 1440 W
Performance Switching bandwidth: 648 Gbps ¦ Forwarding rate: 482.1 Mpps ¦ Stacking bandwidth: 160 Gbps
Capacity IP multicast groups: 4000 ¦ User-created VLAN/VMANs: 4092 ¦ Policy profiles: 63
MAC Address Table Size 272K entries
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, RIP, BGP, PIM-SM, static IPv4 routing, static IPv6 routing, MPLS
Features Half duplex mode, full duplex mode, MACsec support, 2 fans, Virtual Private LAN Service (VPLS), VXLAN tunnel endpoints (VTEP) support, Priority-Based Flow Control (PFC), flexible universal forwarding tables (UFT), Insight Architecture ready
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.3 in x 19.2 in x 1.7 in
Weight 17.5 lbs
