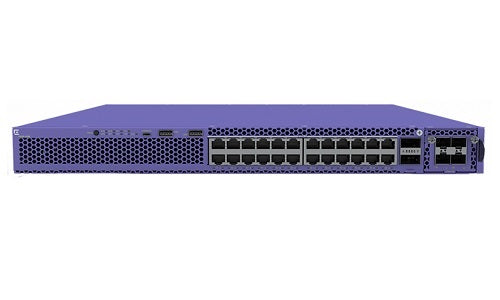

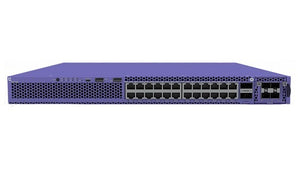

X465-24MU-B1 - Extreme Networks X465 Stackable Edge Switch, 1100w PSU Bundle - New

Extreme Networks

SKU: X465-24MU-B1

Manufacturer: Extreme Networks
Manufacturer Part #: X465-24MU-B1
Condition: NEW
Availability: Stock Available - May Be Limited

ExtremeSwitching X465 Premium Stackable Edge/Aggregation Switch - 24 x 100Mb/1Gb/2.5Gb/5Gb 802.3bt Type 3 (60 watt) PoE ports - Includes 2 x fan modules, 1 x VIM5 slot and a 1100W AC PSU FB (10941) - EXOS Advanced Edge license, Insight Architecture-ready

The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Gigabit and multi-Gigabit Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments.

Device Type Switch - 24 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 5 Gigabit Ethernet
Ports 24 x 100/1000/2.5G/5GBase-T (UPOE) + 2 x 40 Gigabit QSFP+ (stacking)
Power Over Ethernet (PoE) UPOE
PoE Budget 825 W
Performance Aggregate switching bandwidth: 648 Gbps ¦ Stacking bandwidth: 482.1 Mpps
MAC Address Table Size 272K entries
Routing Protocol OSPF, RIP, BGP, PIM-SM, static IP routing
Remote Management Protocol CLI
Features Routing, MPLS support, sFlow, redundant hot swappable fans, Virtual Private LAN Service (VPLS), VXLAN tunnel endpoints (VTEP) support, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), 2 fan trays, non-blocking traffic forwarding
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, ITU-T Y.1731, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.3 in x 19.2 in x 1.7 in
Weight 17.5 lbs
