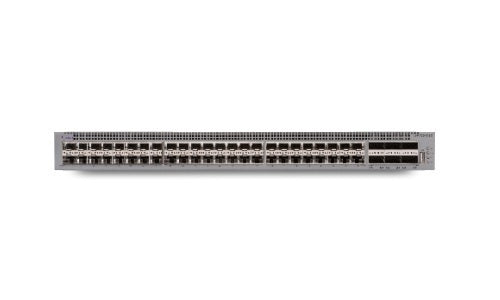

EC7200A3F-E6 - Extreme Networks VSP 7200 Switch, Front-to-Back - New
| Manufacturer: | Extreme Networks |
| Manufacturer Part #: | EC7200A3F-E6 |
| Condition: | NEW |
| Availability: | Stock Available |
ExtremeSwitching Virtual Services Platform 7200 Switch - Port-Licensed 54 port Ethernet Switch - initially supporting 24 x 10GBASE-SFP+ and 4 x 40GBASE- QSFP+ ports - Includes single 460w AC Power Supply, Front-to-Back Airflow and Base Software License - Slide rack mount kit sold separately
| Product Description | Avaya Virtual Services Platform 7254XSQ - switch - 24 ports - rack-mountable |
| Device Type | Switch - 24 ports - L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ |
| Performance | Switching fabric bandwidth: 2.56 Tbps ¦ Forwarding performance: 1.428 Bpps ¦ Latency: 480 ns |
| Capacity | Virtual interfaces (VLANs): 4059 ¦ MSTP instances: 12 ¦ ARP entries: 32000 ¦ IP router interfaces: 506 ¦ Static routes: 5000 ¦ RIP routes: 16000 ¦ OSPF routes: 16000 ¦ OSPF Areas: 80 ¦ BGP peers: 12 ¦ BGP routes: 16000 ¦ ECMP groups: 1000 ¦ Equal-Cost Multipathing (ECMP) ways: 16000 ¦ ACL entries (egress): 126 ¦ ACL entries (ingress): 256 |
| MAC Address Table Size | 224000 entries |
| Jumbo Frame Support | 9600 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, BGP, VRRP, static IP routing, OSPFv3, PIM-SSM, ECMP |
| Features | NAT support, PAT support, ARP support, trunking, traffic shaping, port mirroring, IPv6 support, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, back to front airflow, IPv4 support, LACP support, clustering technology, Data Center Bridging (DCB), Virtual Routing and Forwarding (VRF), FCoE support, Shortest Path Bridging (SPB) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1aq |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 17.3 in x 18.3 in x 1.7 in |
| Weight | 18.74 lbs |
