VSP4900-48P-B1 - Extreme Networks VSP 4900 Switch - Refurb'd

Extreme Networks

SKU: VSP4900-48P-B1

Please Call for Price & Availability.

Manufacturer: Extreme Networks
Manufacturer Part #: VSP4900-48P-B1
Condition: REFURBISHED
Availability: Call For Availability

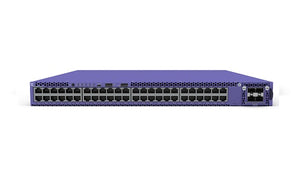

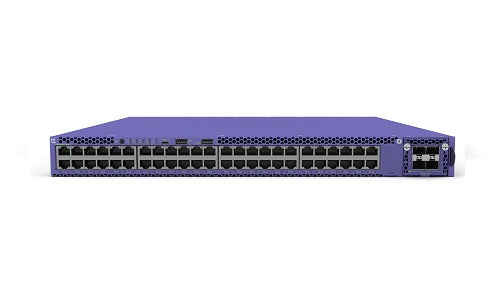

ExtremeSwitching Virtual Services Platform 4900-48P Switch - with 48 x 10/100/1000Base-T full/half duplex 802.3at PoE (30W) MACsec-capable ports - includes 3 fan modules and 1 PSU 1100w Front-to-Back airflow - 1 unpopulated VIM5 slot

Product Description Extreme Networks Virtual Services Platform 4900 - Bundle - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+)
Performance Switching capacity: 196 Gbps ¦ Frame rate: 145.8 Mpps
Capacity VLANs supported: 4059 ¦ MSTP instances: 12 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 32000 ¦ IPv4 routes: 15488 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 500 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 8000 ¦ IPv6 routes: 7744 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 40000 ¦ L2 virtual service networks: 4059 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 15488 ¦ IP shortcut routes (IPv6): 7488 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256
MAC Address Table Size 80K entries
Routing Protocol RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+
Features Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, Deep Packet Inspection (DPI), sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), front to back airflow, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), IPFIX, Shortest Path Bridging (SPB), Virtual Extensible LAN (VXLAN), port-based VLAN, support Virtual Service Networks (VSN), support IP Shortcut Routing, Rapid Reconfiguration of Spanning Tree (RSTP), Metallic Loop Testing for subscriber lines (MLT), Media Access Control Security (MACsec)
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj
Power AC 120/230 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.3 in x 19.2 in x 1.7 in
Weight 18.5 lbs
System Requirements VSP Operating System Software (VOSS)
