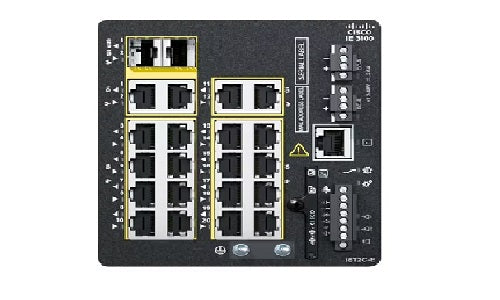

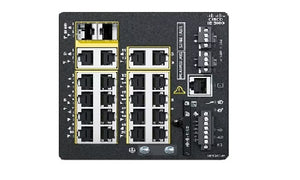

IE-3100-18T2C-CC-E - Cisco Catalyst IE3100 Rugged Switch, 18 Port GE, 2xGE Combo Uplinks, Conformal Coating, Network Essentials - Refurb'd

Our Product Guaranty

Manufacturer: Cisco
Manufacturer Part #: IE-3100-18T2C-CC-E
Condition: REFURBISHED
Availability: Contact For Availability

Cisco Catalyst IE3100 Rugged Switch - Total 20 ports - 18 x 10/100/1000 Mbps RJ45 Copper Ports with 2 x GE Combo Uplink Ports - Conformal coating - Network Essentials (perpetual) License - Dual DC Inputs; 36.7 watt power consumption - DIN Rail Mountable

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

Device Type: Switch - 20 ports - managed

Subtype: Gigabit Ethernet

Ports: 18 x 10/100/1000 + 2 x combo Gigabit

Capacity: Queues: 8 | IGMP groups: 512 | VLANs supported: 256 | Indirect IPv4 routes: 2000 | STP instances: 128

MAC Address Table Size: 8000 entries

Routing Protocol: IGMP, IGMPv2, IGMPv3, STP, static IP routing

Remote Management Protocol: DHCP, Modbus, HTTP, HTTPS, MIB, Syslog, NETCONF, RESTCONF, IPv4, IPv6, YANG, TFTP, ICMP, Telnet, SNMP, SNMP 1, SNMP 2, SNMP 3, NTP, RMON

Features: MRP, REP, CIP support, PROFINET, fanless, surge protection, shock-resistant, vibration-proof, PTP, Rapid PVST+, PVST+, RPVST, RSPAN, SPAN, FSPAN, Storm Control, VTP v.2, VTP v.3, EtherChannel support, L2TP support, Q-in-Q tunneling, IGMP snooping, MLD snooping, EEM, iPnP, DHCPv6 guard, router advertisement guard, NEAT, DHCP snooping, DAI, AAA, SCP, QoS, UDP support, TCP support, BOOTP support, FTP support, DiffServ support, conformal coated

Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z

Power Redundancy: Optional

Dimensions (WxDxH): 4.3 in x 5.1 in x 5 in

Weight: 2.8 lbs
